Uses of this module

Use a slideshow module when you want to display a set of images in the foreground, one at a time. Besides the traditional horizontal slide transition, there are several other types of transitions from one image to the next, as described in the Playback tab section below. The images come from a gallery you create either in the WordPress Media Library or in SmugMug. You can display the image title, but if there is other content you want to display and the image is of secondary importance, see the related modules described below.

Display options

Besides various types of transitions of the slides themselves, there are various options to display navigation and play controls, an image caption, social media links, thumbnails of the gallery, and a full-screen toggle, all described in the following sections.

Here is a screenshot of an image slideshow, showing the three main areas:

  • The slides are taken from a gallery of images that you specify.
  • Large navigation arrows can be displayed on either side of the slides, or with wider slides, the icons are overlaid on the slides.

The control bar appears above or below the images, depending on your settings.
All the icons that appear in the control bar can be displayed or hidden, as explained in more detail below.

  • All of the icons that appear in the control bar can be displayed or hidden, as explained in more detail below.

Slideshow module settings

General tab

This tab has the following settings.

  • Source
    Safhitak Media Library or SmugMug.
  • Photos(Media Library only)
    Contains links to create a gallery of images in your Media Library or to edit an existing gallery.
  • Feed URL (SmugMug galleries only)
    Enter the URL for the RSS feed here. For help with linking to a SmugMug gallery.

Display section

  • Height
    Sets the height of the box in which images and controls are displayed. The default height is 500px.
  • Skin color
    There’s not much difference but choose Light if you have light-colored images and background and Dark if you have dark-colored images and background. Individual image size is adjusted to maintain this height.
  • Crop
    Since the Height setting keeps the height of each image constant, the Crop setting determines whether the width of the image will adjust to display the full image (so the width will vary depending on each image) or the image width expands to the full width of the column (minus margin and padding) and crops the left and right edges if necessary.
  • Disable right-click
    Does not allow the image to be downloaded.

Click Action section

  • Type
    None or choose Link to add a URL that will serve as a single destination for the entire set of images. You cannot set a separate link for each image.
  • Link URL
    If you selected Link for the Click action, enter the destination URL here.

Playback tab

  • Auto Play
    Yes(the default) means the images transition automatically and can be overridden by any navigation controls that are displayed. No means the user must advance the images using the navigation controls.
  • Speed
    The number of seconds the full image is displayed. The default is 3 seconds.
  • Transition
    Choose among the following types of transitions from one image to the next. The default transition is Fade.

    • None
      The next image is immediately displayed instead of a transition effect.
    • Fade
      Slide loses opacity while the next slide comes into view.
    • Ken Burns
      The Ken Burns movement is applied during both the display and transition times with a quick fade transition to the next slide.
    • Slide horizontal
      Typical horizontal movement from right to left
    • Slide vertical
      The current slide moves upwards followed by the next slide. There is no white space between the current and the next slide.
    • Blinds
      Vertical bands of white space appear over the image and become narrower until the full image is displayed.
    • Bars
      The next image appears with an overlay of nearly transparent gray squares during a fade transition. The effect works best at short transition times. For longer transitions, the effect more resembles the Fade transition.
    • Random bars
      Vertical light gray bars of random width and spacing overlay the next image and fade out.
    • Boxes
      The next image appears with an overlay of nearly transparent gray squares during a fade transition.
    • Random boxes
      Random gray rectangles overlay the next image and fade out.
    • Boxes grow
      The next image appears with a gray grid overlay that shrinks and disappears.
  • Transition speed
    Many seconds were spent transitioning to the next image. The default transition speed is one second.
  • Randomize photos
    No (default) means photos are displayed in the same order as they appear in the gallery. Yes, means the images are randomized. The randomization order stays the same with auto-play loops and navigation.

Controls tab

This tab has settings for the display of the navigation arrows and all the controls in the control bar. Some settings apply to showing or hiding individual icons in the control bar, and other settings apply to the display of the control bar itself.

General Control Bar display settings

There are two sections on the Controls tab that affect the entire control bar.

Control Bar section
  • By default, the control bar is enabled. To hide it, in the Control Bar section, set Nav type to None.
  • If you display the control bar, for the Nav typesetting you can choose Buttons or Thumbs.
    The Buttons choice displays the forward, back, and play buttons as icons.
    The Thumbs choice displays thumbnails of the gallery images, which can be clicked to navigate to a different slide. By default, the size of the thumbnail images is 50px, but you can change that in the Thumbs size field in the Thumbs
  • By default, the control bar is displayed at the bottom. To move it to the top, in the Control Bar section, set Nav position to Top.
Control Bar Overlay section

This section has an Overlay enabled field, which by default is set to No, meaning the control bar is displayed below or above the slides. If set to Yes, the control bar is placed in a narrow semitransparent band along the inside bottom of the top of the slides themselves. In this case, there are two additional settings: Overlay Hide and Overlay Hide Delay. If set to No, the control bar overlay is always visible. If set to Yes, the control bar overlay disappears after the number of seconds that you specify.

Show or hide individual icons in the control bar

In the Nav Bar Arrows setting and Control Bar Buttons section, you can show or hide any of the icons in the control bar. In the following screenshot, the icons are numbered and are explained below.

 1- Navigation Arrows setting

The Navigation Arrows setting is the first field on the Controls tab. Yes means the navigation arrows display, No means they don’t. The actual color of the arrows depends on whether you set Light or Dark as the Skin color on the General tab. These arrows may appear inside or outside of the image, depending on image width and the Crop setting on the General tab.

2- Thumbs button

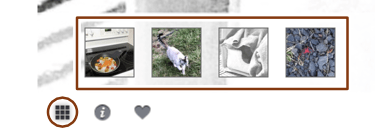

Yes, displays this icon, and clicking the icon opens thumbnails of all the images in the gallery, as shown in this screenshot. By default, the size of the thumbnail images is 50px, but you can change that in the Thumbs size field in the Thumbs section.




3- Caption button

Yes displays the Information icon, shown in this screenshot, and clicking the icon displays the image’s caption from the Media Library.

4- Social button

Yes displays a Heart icon, shown in this screenshot, and clicking the icon displays whatever social buttons you have enabled in the Social section on this tab.

5- Navigation arrows (control bar)

This Navigation Bars setting is in the Control Bar Buttons section of the Controls tab. Yes displays the buttons.

6- Play button

Yes displays the Play/Pause button in the control bar. Enable this setting if you want to give your user the option to automate the slide show even when AutoPlay is set to No on the Playback tab.

7- Photo count

If set to Yes, the photo count is displayed as the current photo position / total photos.

8- Fullscreen button

If set to Yes, this button is displayed and the entire slideshow expands to fullscreen when clicked.
